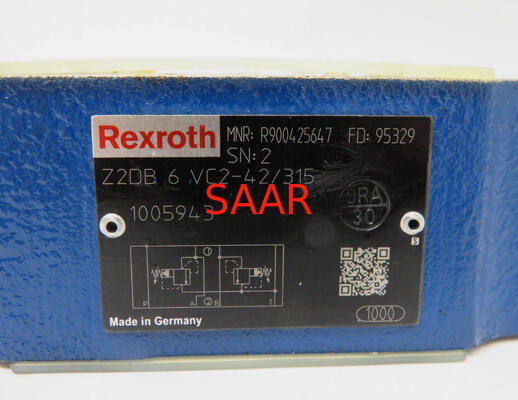

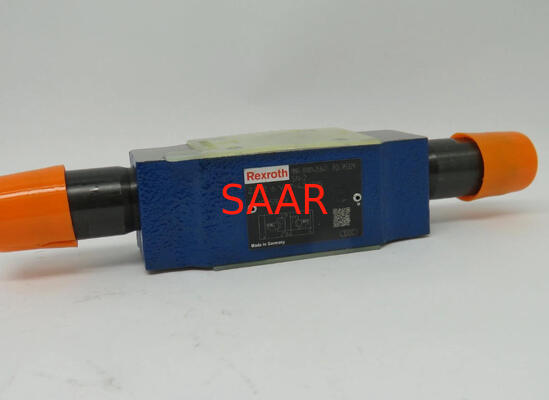

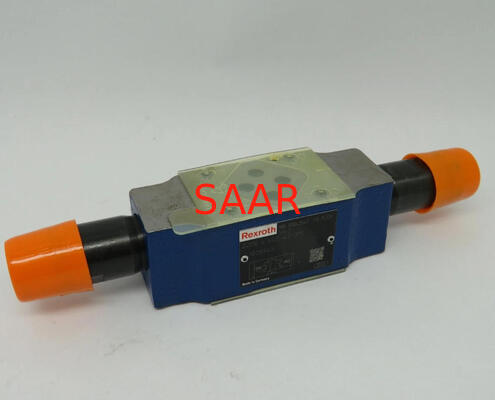

Name: R900425647 Z2DB6VC2-42/315 Rexroth Pressure Relief Valve
Brand: Saar HK Electronic Limited
SKU: R900425647 Z2DB6VC2-42/315
Price: 950.00 USD
Availability: InStock

Dom Produkty Zawory hydrauliczne Rexroth

R900425647 Z2DB6VC2-42/315 Rexroth Pressure Relief Valve

Szczegóły Produktu:

Miejsce pochodzenia:	Niemcy
Nazwa handlowa:	Rexroth
Numer modelu:	R900425647 Z2DB6VC2-42/315

Zapłata:

Minimalne zamówienie:	1
Cena:	On request
Szczegóły pakowania:	Standardowe pudełko papierowe
Czas dostawy:	7-10 dni
Zasady płatności:	T/T, Western Union
Możliwość Supply:	100 sztuk miesięcznie

Kontakt

Szczegółowy opis produktu

Model:	Z2DB6VC2-42/315	Mnr:	R900425647

Rexroth Pressure relief valve, pilot controlled
ZDB6, Z2DB6

Size 6
Component series 4X
Maximum operating pressure 315 bar
Maximum flow 60 l/min

Features

Sandwich plate valve
Porting pattern according to ISO 4401-03-02-0-05 (with or without loSAARing hole)
4 pressure ratings
5 circuit options
With 1 or 2 pressure valve cartridges
4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale
Corrosion-protected design

Type Code :

01	02	03	04	05	06		07		08	09	10	11	12
Z		DB	6			–	4X	/					*

01	Sandwich plate	Z
02	1 pressure valve cartridge (only with version “VA”, “VB” and “VP”)	no code
02	2 pressure valve cartridges (only with version “VC” and “VD”)	2
03	Pressure relief valve	DB
04	Size 6	6
Relief function from – to:
05	A – T	VA
	P – T	VP
	B – T	VB
	A – T and B – T	VC
	A – B and B – A	VD
Adjustment type for pressure adjustment
06	Rotary knob	1
	Sleeve with hexagon and protective cap	2
	Lockable rotary knob with scale	3¹⁾
	Rotary knob with scale	7
07	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
Pressure rating
08	Set pressure up to 50 bar	50
	Set pressure up to 100 bar	100
	Set pressure up to 200 bar	200
	Set pressure up to 315 bar	315
Corrosion resistance
09	None	no code
	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3²⁾
	High corrosion protection (720 h salt spray test according to EN ISO 9227)	J5²⁾
Seal material
10	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
11	Without loSAARing hole	no code
11	With loSAARing hole	/60 ³⁾
12	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Pressure relief valve, pilot controlled ZDB6 Z2DB6 Model List:

R900583140	Z2DB6VC.-4X/...V
R900967509	Z2DB6VC1-4X/100
R900952453	Z2DB6VC1-4X/100-100V
R900523754	Z2DB6VC1-4X/100V
R900967510	Z2DB6VC1-4X/200
R900514617	Z2DB6VC1-4X/200V
R900448722	Z2DB6VC1-4X/200VSO2
R900909476	Z2DB6VC1-4X/315
R900521130	Z2DB6VC1-4X/315V
R901187418	Z2DB6VC1-4X/315XCV
R900967508	Z2DB6VC1-4X/50
R900554759	Z2DB6VC1-4X/50V
R900425648	Z2DB6VC2-4X/100
R900462243	Z2DB6VC2-4X/100SO20
R901268264	Z2DB6VC2-4X/100P60
R900904305	Z2DB6VC2-4X/100P80
R900411315	Z2DB6VC2-4X/100V
R900431164	Z2DB6VC2-4X/200
R900442784	Z2DB6VC2-4X/200MIL15
R900538229	Z2DB6VC2-4X/200SO280
R900539433	Z2DB6VC2-4X/200SO770
R901196269	Z2DB6VC2-4X/200-100
R901043299	Z2DB6VC2-4X/200-130
R900978247	Z2DB6VC2-4X/200-140
R901427715	Z2DB6VC2-4X/200-150V
R901196264	Z2DB6VC2-4X/200-160
R901269810	Z2DB6VC2-4X/200-190
R901251746	Z2DB6VC2-4X/200-50V
R901191059	Z2DB6VC2-4X/200J
R901356555	Z2DB6VC2-4X/200P110
R900411312	Z2DB6VC2-4X/200V
R900595525	Z2DB6VC2-4X/200VSO19
R900449952	Z2DB6VC2-4X/200VSO2
R901425634	Z2DB6VC2-4X/200V=PL
R901052214	Z2DB6VC2-4X/200V=TA
R900788023	Z2DB6VC2-4X/210V
R900425647	Z2DB6VC2-4X/315
R900429582	Z2DB6VC2-4X/315MIL15
R900586819	Z2DB6VC2-4X/315SO224
R900972078	Z2DB6VC2-4X/315SO48
R900786648	Z2DB6VC2-4X/315-185
R901020252	Z2DB6VC2-4X/315-205
R901257689	Z2DB6VC2-4X/315-210V
R901200681	Z2DB6VC2-4X/315-230
R901268875	Z2DB6VC2-4X/315-250
R900578602	Z2DB6VC2-4X/315-250V
R901193966	Z2DB6VC2-4X/315-295
R900901958	Z2DB6VC2-4X/315J
R901447437	Z2DB6VC2-4X/315J3
R901427506	Z2DB6VC2-4X/315J5
R901420067	Z2DB6VC2-4X/315J5V
R900928007	Z2DB6VC2-4X/315JV
R901389339	Z2DB6VC2-4X/315P315
R900411318	Z2DB6VC2-4X/315V
R900438193	Z2DB6VC2-4X/315VSO237
R900433252	Z2DB6VC2-4X/315VSO450
R901389851	Z2DB6VC2-4X/315V/60
R900715029	Z2DB6VC2-4X/315V=LH
R900461751	Z2DB6VC2-4X/50
R900481501	Z2DB6VC2-4X/50V
R901361190	Z2DB6VC2-4X=200V
R901404718	Z2DB6VC2-4X=315V
R900439928	Z2DB6VC3-4X/100
R900441459	Z2DB6VC3-4X/100V
R900440998	Z2DB6VC3-4X/200
R900437448	Z2DB6VC3-4X/200V
R900428805	Z2DB6VC3-4X/315V
R901265025	Z2DB6VC3-4X/315V/60
R900509096	Z2DB6VC3-4X/50V
R900528590	Z2DB6VC7-4X/100V
R900551706	Z2DB6VC7-4X/200V
R900538856	Z2DB6VC7-4X/315V
R978916643	Z2DB6VC7-4X/50V
R900425649	Z2DB6VD.-4X/...V
R900967512	Z2DB6VD1-4X/100
R900523755	Z2DB6VD1-4X/100V
R900521398	Z2DB6VD1-4X/200
R900569169	Z2DB6VD1-4X/200V
R900529909	Z2DB6VD1-4X/315
R900967914	Z2DB6VD1-4X/315V
R900967511	Z2DB6VD1-4X/50
R900506335	Z2DB6VD1-4X/50V
R900422065	Z2DB6VD2-4X/100
R900902342	Z2DB6VD2-4X/100-100V
R901335659	Z2DB6VD2-4X/100-80V
R901227831	Z2DB6VD2-4X/100J
R900411317	Z2DB6VD2-4X/100V
R901402303	Z2DB6VD2-4X/100V=KM
R900422422	Z2DB6VD2-4X/200
R900562580	Z2DB6VD2-4X/200SO7
R901278991	Z2DB6VD2-4X/200-105
R901092935	Z2DB6VD2-4X/200-120
R900575577	Z2DB6VD2-4X/200-120V
R901041139	Z2DB6VD2-4X/200-140
R900929696	Z2DB6VD2-4X/200-140V
R901041138	Z2DB6VD2-4X/200-50
R901086805	Z2DB6VD2-4X/200-70
R901032861	Z2DB6VD2-4X/200-90
R900505561	Z2DB6VD2-4X/200JV
R901394945	Z2DB6VD2-4X/200P120V
R901321528	Z2DB6VD2-4X/200P160
R900411314	Z2DB6VD2-4X/200V
R900422066	Z2DB6VD2-4X/315
R900559721	Z2DB6VD2-4X/315-100V
R901415337	Z2DB6VD2-4X/315-120V
R900917630	Z2DB6VD2-4X/315-220V
R901295107	Z2DB6VD2-4X/315-240V
R901152443	Z2DB6VD2-4X/315-250V
R900911457	Z2DB6VD2-4X/315-300
R900425914	Z2DB6VD2-4X/315JV
R900411357	Z2DB6VD2-4X/315V
R900567619	Z2DB6VD2-4X/315VSO7
R900715031	Z2DB6VD2-4X/315V=LH
R901052215	Z2DB6VD2-4X/315V=TA
R900463267	Z2DB6VD2-4X/50
R900421937	Z2DB6VD2-4X/50V
R900442328	Z2DB6VD3-4X/100
R900500691	Z2DB6VD3-4X/100V
R900438962	Z2DB6VD3-4X/200
R900437449	Z2DB6VD3-4X/200V
R900599175	Z2DB6VD3-4X/315V
R900422212	Z2DB6VD3-4X/50
R900500657	Z2DB6VD3-4X/50V
R900743351	Z2DB6VD7-4X/100V
R901080471	Z2DB6VD7-4X/200V
R988004610	Z2DB6VP2-4X/100
